Introducing the newest and smallest member of the family.
The #1 selling size spreader! This is, quite simply, the most advanced, best-built manure spreader you’re ever going to see. Now, do you need one this tough? Well, that all depends on how often you like to buy them.
S Series
Specifications
S200
- Length 16′
- Width 5’
- Wall height 3’
- Capacity 320 Cu. Ft.
- Horsepower 90
Twin Vertical Beaters
Remote Grease Banks
Chain Floor
Spring Suspension
Standard Features
12
Gauge
Steel Walls
180
Degree
Swivel arm for
hydraulic lines
Manure
Tailgate
Articulating
Hitch
- 1/4” thick tube construction on reach
- 3/8” thick flighting on vertical beater
- Remote grease banks
- Single drive motor
- Manure tailgate
- Spring suspension
- Single floor chain
- Removable rear chain doors
- 7 tooth rear chain drive sprocket
- 1/2″ HMW Poly floor
- Tire Size: 425, 560 (Radials)
S200
- Length: 16′
- Width: 5′
- Wall Height: 3′
- Capacity: 320 Cu. Ft.
- Horsepower: 90
S350
- Length: 20′
- Width: 5′
- Wall Height: 3′
- Capacity: 400 Cu. Ft.
- Horsepower: 100

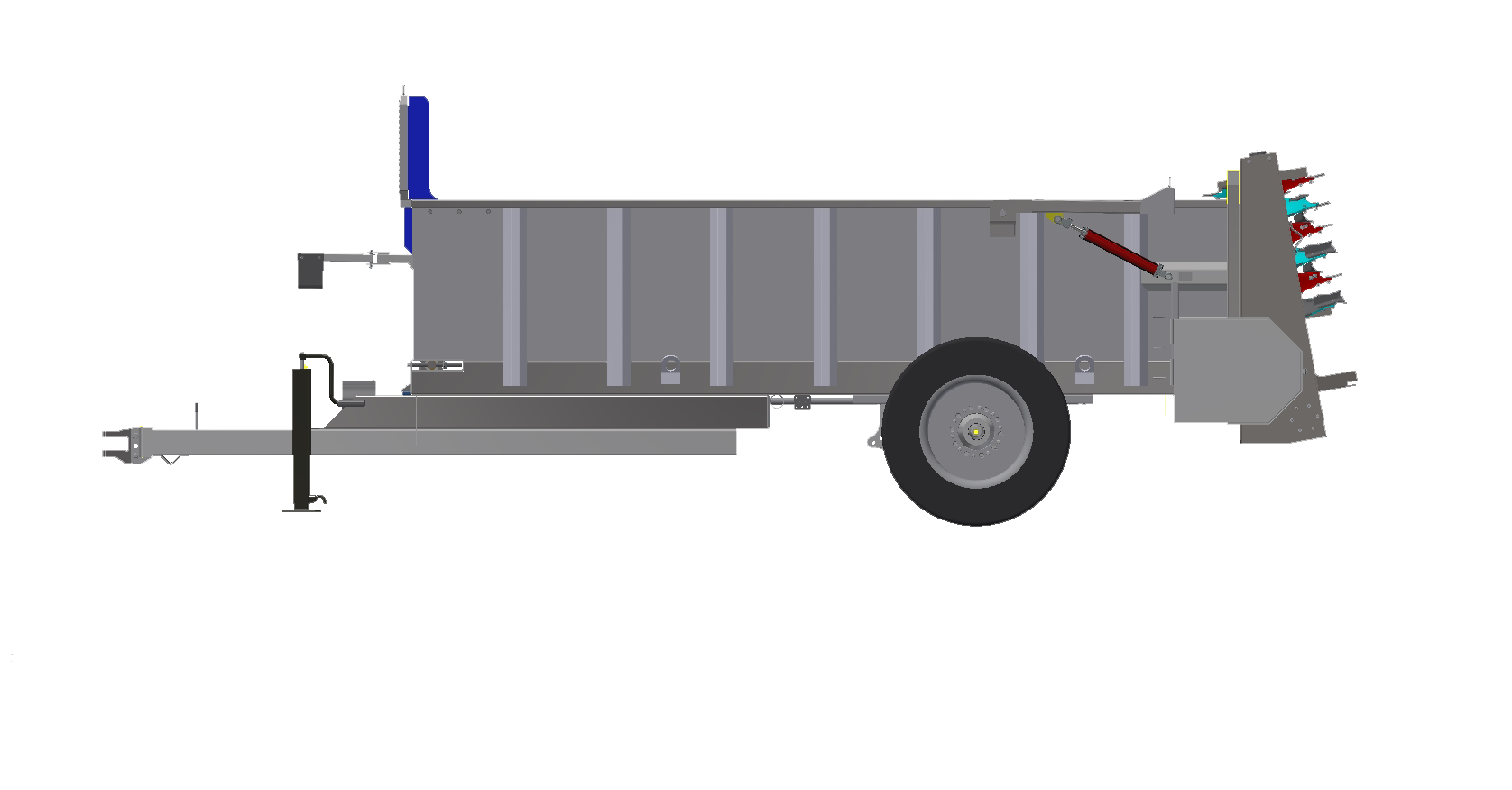

| Model | S200 | S350 | SB300 | 450 | 500 | 550 | 600 | 700 | 700 Triple |
|---|---|---|---|---|---|---|---|---|---|
| A – Overall Length | 291.5″ | 341″ | 263″ | 286″ | 311″ | 334″ | 360″ | 405″ | 405″ |
| B – Inside Box Length | 192″ | 240″ | 168″ | 192″ | 216″ | 239″ | 264″ | 312″ | 312″ |
| Inside Box Length with Guillotine Gate | 175″ | 222″ | 151″ | 174″ | 198″ | 222″ | 247″ | 294″ | 294″ |
| C – Overall Height | 113″ | 113″ | 114″ | 133″ | 133″ | 133″ | 133″ | 136″ | 114″ |
| D – Overall Width | 120″ | 120″ | 125″ | 125″ | 125″ | 125″ | 125″ | 125″ | 125″ |
| Loading Height | 75″ | 75″ | 75″ | 87″ | 87″ | 87″ | 87″ | 87″ | 87″ |
| Specifications | |||||||||
| Unit Weight – Empty | 7500 | 8500 | 9450 | 11420 | 12024 | 12578 | 12440 | 14140 | 15640 |
| Capacity | |||||||||
| Cubic Feet Struck | 240 | 300 | 308 | 352 | 396 | 440 | 484 | 572 | 572 |
| Cubic Yards Heaped | 9.8 | 14.8 | 14 | 16 | 18 | 20 | 22 | 26 | 26 |
| Augers | |||||||||
| Diameter | 31.2″ | 31.2″ | 34.5″ | 34.5″ | 34.5″ | 34.5″ | 34.5″ | 34.5″ | 34.5″ |
| Flighting Thickness | 10 mm | 10 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Tube Diameter | 5.3″ | 5.3″ | 6″ | 6″ | 6″ | 6″ | 6″ | 6″ | 6″ |
| Drive Shaft Diameter | 1 3/4″ | 1 3/4″ | 1 3/4″ | 1 3/4″ | 1 3/4″ | 1 3/4″ | 1 3/4″ | 1 3/4″ | 1 3/4″ |
| Shear Paddles | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PTO | 1 3/8″ or 1 3/4″ | 1 3/8″ or 1 3/4″ | 1 3/8″ or 1 3/4″ | 1 3/8″ or 1 3/4″ | 1 3/8″ or 1 3/4″ | 1 3/8″ or 1 3/4″ | 1 3/8″ or 1 3/4″ | 1 3/8″ or 1 3/4″ | 1 3/8″ or 1 3/4″ |
| RPM | CV-1000 | CV-1000 | CV-1000 | CV-1000 | CV-1000 | CV-1000 | CV-1000 | CV-1000 | CV-1000 |
| PTO Protection Shear Bolt | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Box Construction Thickness | 12 Ga | 12 Ga | 10 Ga | 10 Ga | 10 Ga | 10 Ga | 10 Ga | 10 Ga | 10 Ga |
| Axel Type – Single/Tandem/Triple | Single | Tandem | Single | Tandem | Tandem | Tandem | Tandem | Tandem | Triple |
| Brakes | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
