Specifications
- Model Number: LB3605
- Length 36’
- Width 8’
- Wall Height 5’
- Capacity 2592 CU. FT.
- Horsepower 375

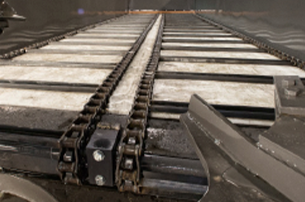

Chain Floor

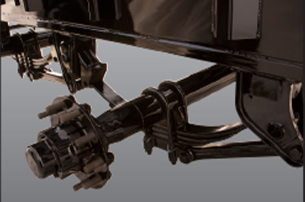

Suspension

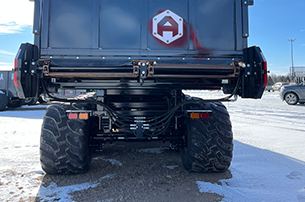

Hydraulic Lift Rear Tailgate

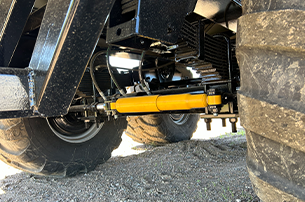

Steerable AxlesStandard Features
12
gauge
steel walls
Floor Chain 88C
Articulating
Bull Pull
Hitch
- REMOVABLE REAR CHAIN DOORS
- 7 TOOTH REAR CHAIN DRIVE SPROCKET
- 1/2” HMW POLY FLOOR
- FLOOR SUPPORTS 9” ON CENTER
- TIRE SIZES AVAILABLE – 750 45R22.5
- 15 TON PER AXEL RATING (30,000 LBS)
- UNDERCARRIAGE COMES STANDARD WITH HYDRAULIC BRAKES
- UNDERCARRIAGE EQUIPPED WITH SELF-STEER TECHNOLOGY
- AIR OR HYDRAULIC BRAKES
Standard color options – custom colors available upon request
| Model | LB3605 | ||
|---|---|---|---|
| A – Overall Length | 516″ | Capacity | |
| B – Inside Box Length | 430″ | Cubic Feet (With Extensions) | 2592 |
| C – Overall Height | 157″ | Cubic Feet (With Extensions) | 96 |
| D – Overall Width | 124″ | Box Construction – Thickness | 12 ga |
| Loading Height | 130″ | ||
